HappyModel Crux35 ELRS V2 CrazyF411 ELRS AIO URAT OVX306 300mW Caddx Ant 1200TVL EX1404 KV3500 4S 3.5inch FPV Freestyle Drone

$257.92 USD

~~$0.00 USD~~ $257.92 USD

Sale Sold out

Color URAT ELRS

SPECIFICATIONS

Aerial Photography: No

Anti-wind Ability: 5

Brand Name: NoEnName_Null,happymodel

Control Channels: 2 CHANNELS

Controller Battery: NO

Controller Mode: MODE2

Drone Weight: 0.05KG

Flight Time: 10~20

Hign-concerned Chemical: None

Is Electric: No battery

Material: Plastic

Model Number: Crux35

Origin: Mainland China

Package Includes: Original Box

Recommend Age: 14+y

Remote Control: Yes

Remote Distance: 500

Takeoff Weight: 100

Transit Time (Days): 500

Video Capture Resolution: other

NOTICED: SPI ELRS version Crux35 were discontinued. The new ELRS V2 version comes with CrazyF411 ELRS AIO flight controller built-in UART ExpressLRS receiver.

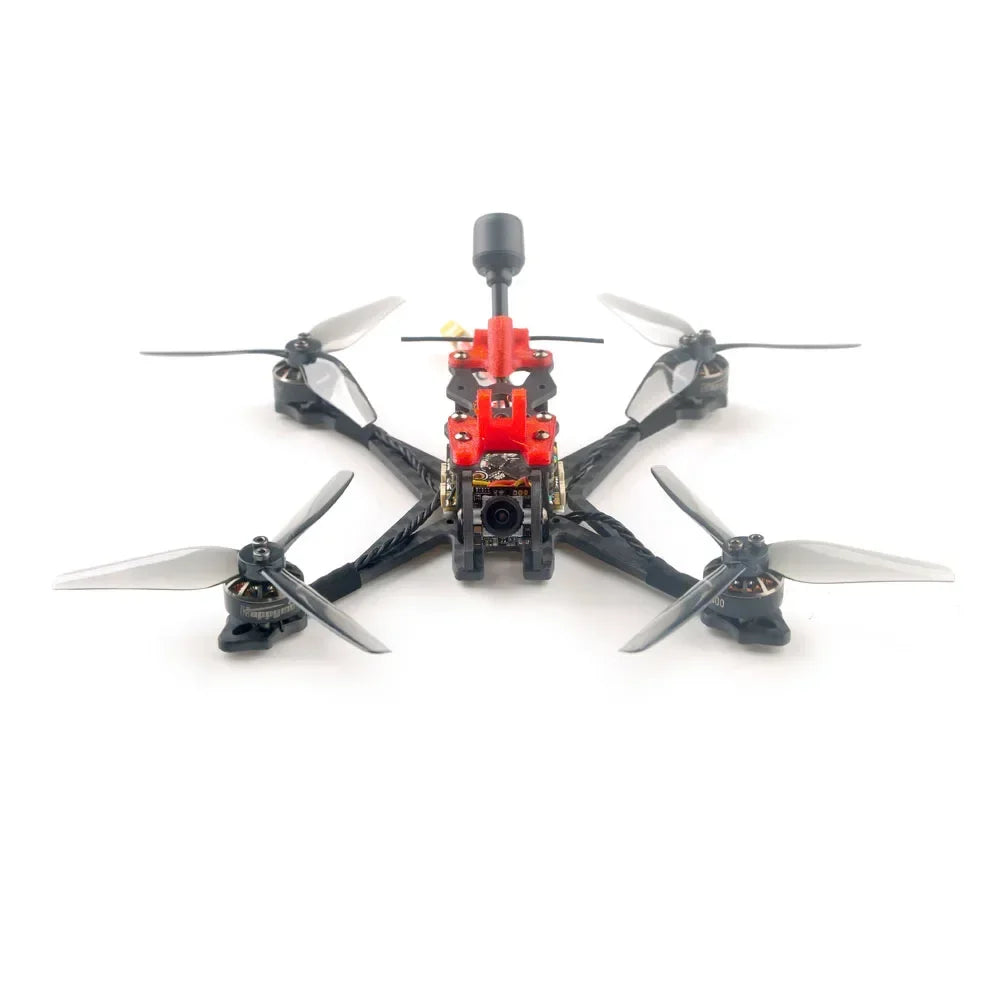

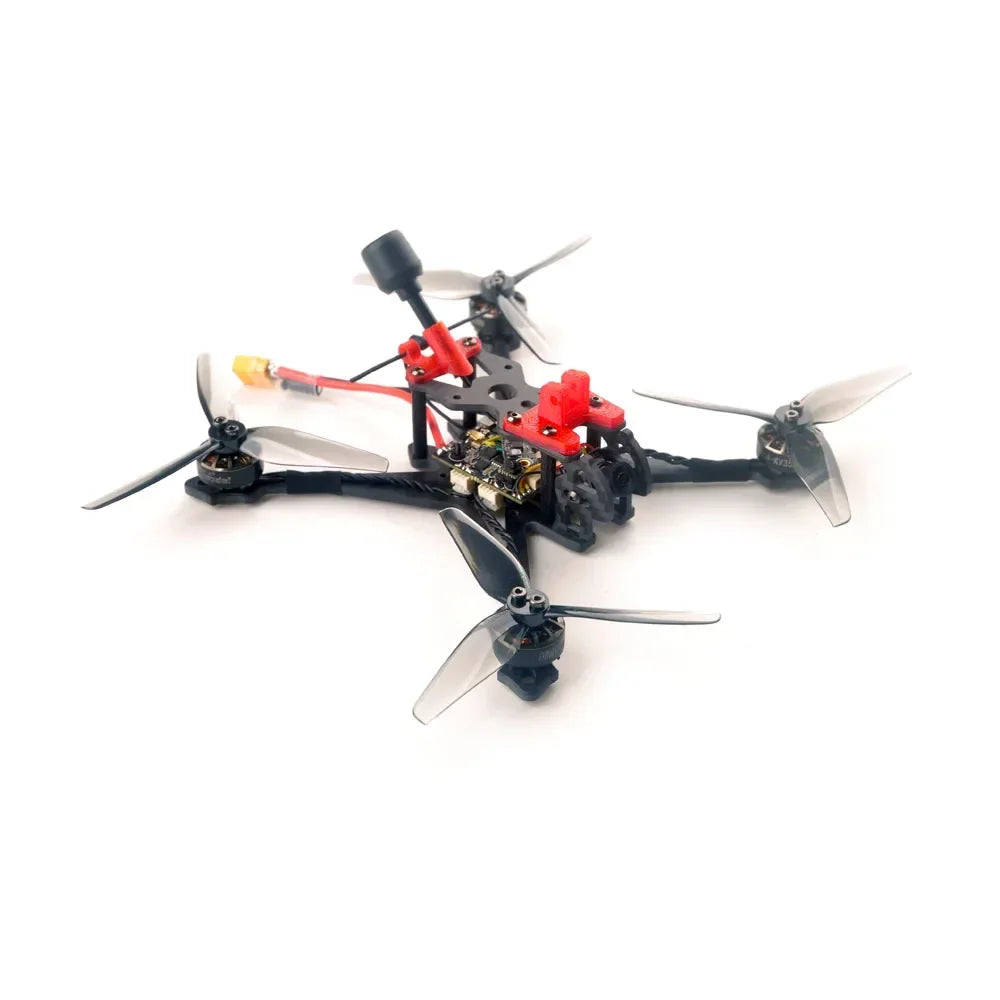

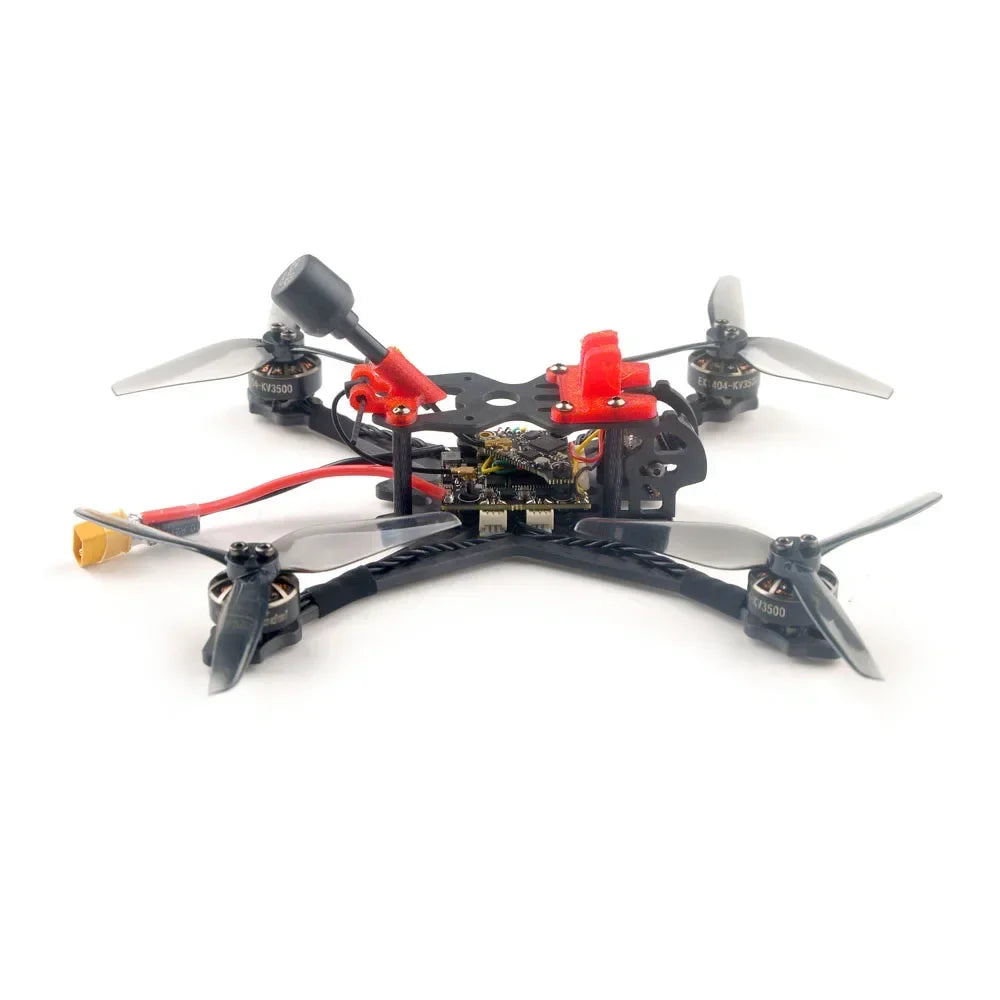

CRUX35 is an ultra-lightweight 3.5Inch FPV Freestyle FPV Racing Drone, the weight of the whole drone is only 87g for the analog version. The Crux35 serials drone use Happymodel EX1404 high-efficiency motor and HQPROP 3.5-inch three-blade propeller to ensure the largest thrust-to-weight ratio under the most efficient premise, which can bring you a smooth Freestyle flying experience.

The analog version is equipped with CADDXFPV Ant ant camera.

The receiver version can be UART ExpressLRS and SPI Frsky (S-FHSS compatible) for choose.

ExpressLRS is the most popular RC link system by now , it could performance very well with Crux35.

Features:
Ultra-lightweight 3.5-inch BNF FPV Freestyle Drone
HD video transmission and analog video transmission are optional
Integrated ExpressLRS UART receiver or Frsky SPI D8/D16 receiver
High efficiency EX1404 power system

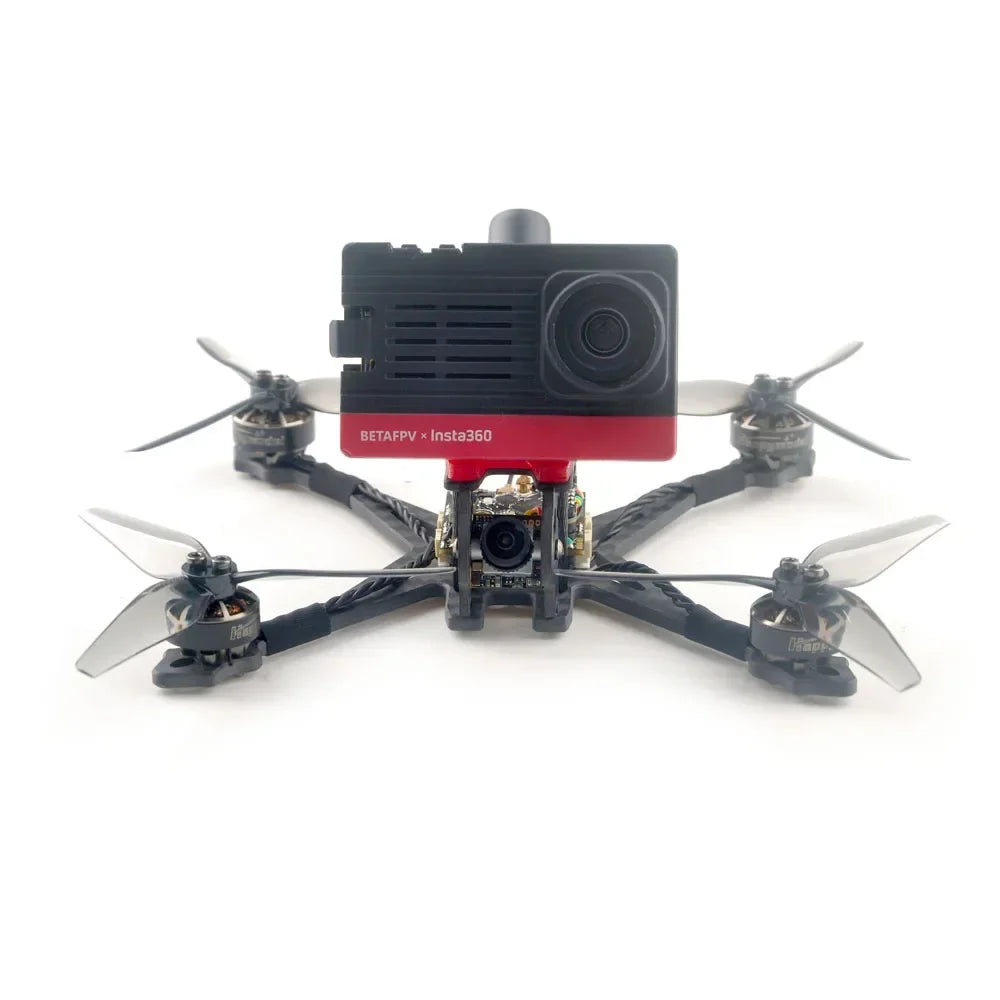

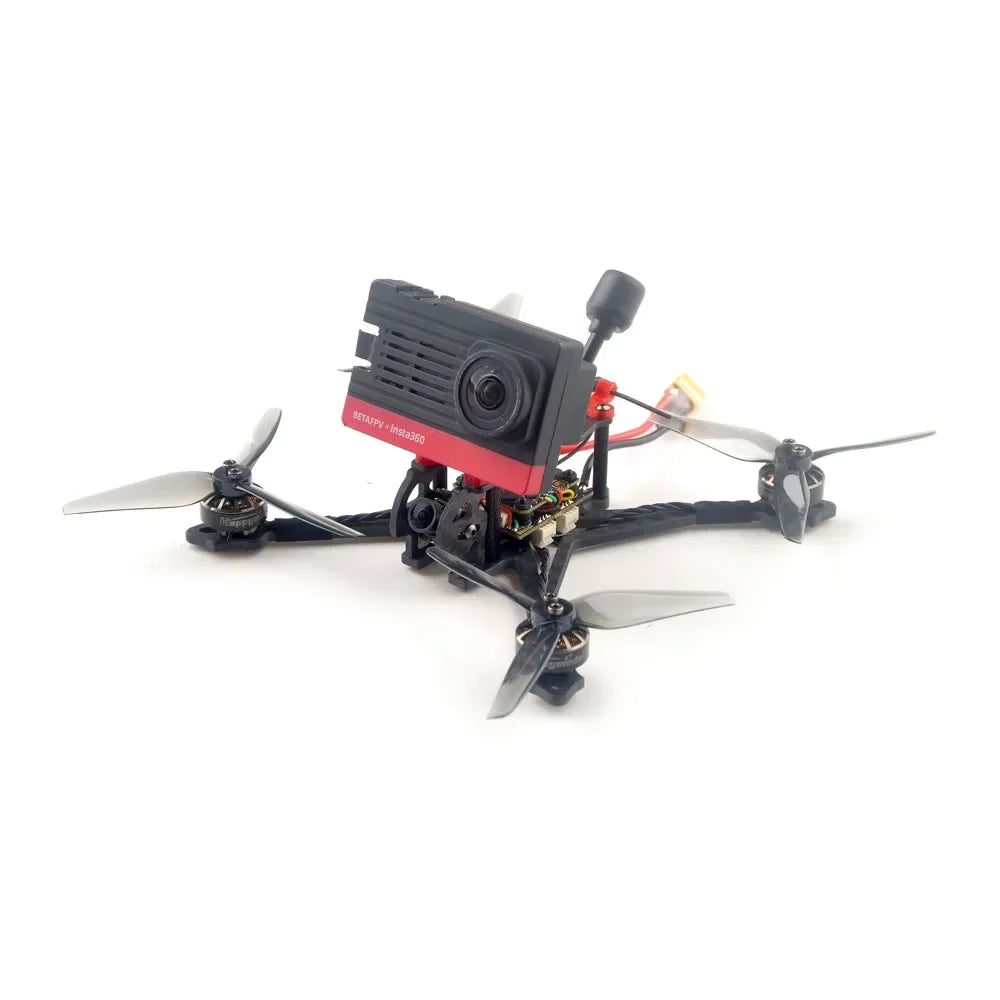

Can be equipped with Naked Gopro or SMO4K
Support 3-4S battery 4S 750mah battery is recommended, maximum support 4S 1100mah

Specifications:
Brand: Happymodel
Product name: Crux35
Wheelbase: 150mm

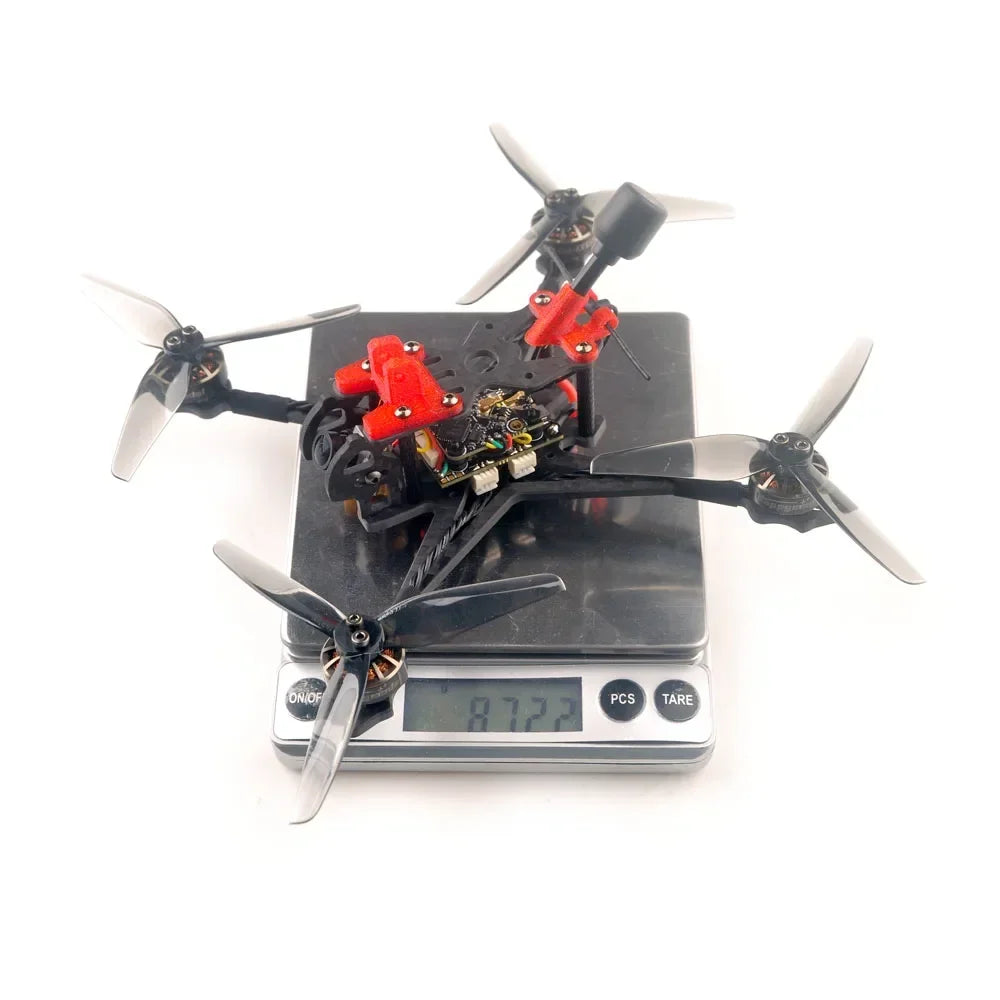

Weight: Crux35 87gram
Size: 130mmx130mmx45mm(without propellers)
Receiver option: UART ExpressLRS 2.4GHz
SPI Frsky D8/D16 (S-FHSS compatible)
Camera and VTX option:
Analog version Ant+OVX303 or OVX306 VTX
Flying time: 9min~15min 4s 750mah battery

Package includes:

Item Name	Crux35	Crux35 HDZERO	Crux35 HD DJI
Crux35 Frame	1	1	1
Option1: ELRS X1 FC with SPI ELRS(Discontinued)	1	1	1
Option2:CrazyF411 ELRS FC with UART ELRS
Option3: CrazyF411 FRSKY FC SPI Frsky
CaddxFPV Digital HD Camera Nebula Nano Kit Or Runcam Link Wasp Nano	0	0	1
HDZERO Whoop VTX+ Rucam HDZERO Camera	0	1	0
Analog FPV Camera Caddx Ant	1	0	0
Happymodel OVX303 5.8G analog VTX	1	0	0
Happymodel EX1404 KV3500 brushless motor	4	4	4
HQProp T3.5X2X3Grey (4cw+4ccw)	1	1	1
Screw Driver	1	1	1
Buckle Velcro for battery	1	1	1

Motor

Mode: EX1404
KV options: KV3500
Configu-ration:9N12P
Stator Diamter:14mm
Stator Length:4mm
Shaft Diameter: Φ1.5mm
Motor Dimension(Dia.*Len):Φ15mm*15mm
Weight(g):9g

Propellers

Propeller Diameter: 3.5 inch
Pitch : 2
Blades : 3
Material : Poly Carbonate
Weight : 1.5g
Hub Diameter : 10mm
Hub Thickness:4.7mm
Shaft :1.9/1.5/1.9mm
Adaptor Rings : NO

Flight controller

(UART ELRS Version)

CrazybeeF411 ELRS

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM42688P or BMI270 (SPI Control)
Mount pattern: 25.5×25.5 M2
Size:32*32*5mm
Power supply: 2-4S Lipo battery
Built-in 20A Blheli_s ESC each
Built-in Betaflight OSD(SPI Control)
Built-in UART ExpressLRS 2.4GHz receiver
Built-in 5V 1.5A BEC
Flight controller firmware target: CRAZYBEEF4DX

Flight controller

(SPI ELRS Version)

ELRS X1 (Discontinued)

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Mount pattern: 20×20 M2Size:32*28*9mm
Power supply: 2-4S Lipo battery
Built-in 12A Blheli_s ESC each
Built-in Betaflight OSD(SPI Control)
Built-in SPI ExpressLRS 2.4GHz receiver
Built-in 5V 1A BEC
Flight controller firmware target: CRAZYBEEF4SX1280

Flight controller
(Frsky version)CrazybeeF411 FRSKY

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: BMI270 or ICM42688P(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 2-4S battery input (DC 8V-17V)
Built-in 20A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Frsky D8/D16 SPI receiverBuilt-in 2.4G Power Amplification
Built-in Betaflight OSD(SPI Control)
Built-in Current meter
Built-in 5V 1.5A BEC
Built-in voltage detectionFirmware target: MATEKF411RX

Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HVCurrent: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: F-H-40
Default protocol: DSHOT300

Onboard UART ExpressLRS 2.4GHz Receiver( UART ELRS version)

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHzAntenna plug: IPEX
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1

Onboard SPI Frsky 2.4GHz receiver (Frsky Version)

SPI BUS receiver
Frsky D8/D16/EU-LBT/, Futaba S-FHSS switchable on Betaflight
Channels: 8ch/16chDual antenna
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 400m

Caddx ANT 1200tvl camera (Analog version)	Image Sensor: 1/3″ CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 3D DNR Dimensions: 1414mm(with bracket to 1919mm) Wide Power Input: DC 3.7-18V Work Temperature: -20℃~+60℃ Weight: 2g (N.W.)
OVX303 5.8Ghz VTX (Analog version)	Model: OVX303 Frequency: 5.8G 40CH Transmitting Power: 0/RCE/25mw/100mw/300mw Power supply: DC 5V Current (5v): <650ma (300mw) Weight: 1.5gram without antenna
OVX306 5.8Ghz VTX (Analog version)	Model: OVX306 Frequency: 5.8G 40CH Transmitting Power: 0/RCE/25mw/100mw/300mw Power supply: DC 5V Current (5v): <650ma (300mw) Weight: 1.5gram without antenna
